High-Speed Servo Stretch Wrapper | Servo Motor Driven Film Wrapping Machine

Name: High-Speed Servo Stretch Wrapper | Servo Motor Driven Film Wrapping Machine
Brand: Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. )
SKU: SJG-1200W
Price: 4,250.00 USD
Availability: InStock

브랜드 이름:	JIGUO
모델 번호:	SJG-1200W
모크:	1
가격:	$4000-$4500
배달 시간:	30
지불 조건:	L/C, T/T, MoneyGram

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

제품명:

서보 스트레치 필름 팔레트 포장기

상표:

시노 지구

상태:

새로운

기능:

스트레치 필름으로 상자, 판지, 팔레트로 운반된 물품을 자동으로 포장합니다.

포장 필름 폭:

60-1200mm

범주:

포장기계 > 팔레트 포장기

최소 포장 회전수:

2회전(조정 가능)

랩 타임:

0.9초/랩(속도 조절 가능)

원래 장소:

중국

보증:

1년

포장 세부 사항:

필름 감기

공급 능력:

강조하다:

servo stretch wrapper machine

high-speed film wrapping machine

servo motor driven wrapper

제품 설명

SJG-1200W High-Speed Servo Stretch Wrapper | Servo Motor Driven Film Wrapping Machine

Achieve tight, safe packaging effortlessly with this stretch wrapping machine — it never leaves compression marks on items. After wrapping, film is neatly trimmed with no trailing ends, effectively safeguarding your products and solving the cargo damage problems caused by old-style strapping machines.

It adopts premium branded configurations: SIE PLC, XINJE servo motors and full AIRTAC pneumatic system. All electrical fittings from reputable manufacturers guarantee top quality and dependable performance. CNC processing for gear ring and key components ensures high accuracy, silent running and extended lifespan.

Compatible with regular 220V power supply, this plug-and-play device is intuitive to use. You can start operation right away without any specialized training.

High-Speed Servo Stretch Wrapper | Servo Motor Driven Film Wrapping Machine 0

Working Principle:

This unit features a 360° high-speed rotating ring. As the ring spins, the film holder circles around stationary cartons and products, applying PE stretch film in an even, firm spiral wrap. The whole wrapping cycle runs fully automatically. Staff only need to load and unload goods, making the operation simple and highly productive.

Unlike conventional pallet wrapping machines, this model works without pallets and wraps single cartons directly. Since products stay fixed during operation, there is no risk of tipping even at high speeds. It is perfectly suited for packaging small and lightweight goods.

Its key strengths include excellent wrapping tightness, optimized film usage and far higher working speed than manual packaging.

Technical Specifications

Model	SJG-1200W
Wapping Film Height	50-700mm
Wapping Film Width	60-1200mm
Power	1.2KW
Voltage	220V/50HZ
Weight	350kg
Min Wrapping Turns	2 turns(adjustable)
Lap Time	0.9 seconds/lap(adjustable speed)
2-Wrap Speed	2.2 seconds
Applicable Film thickness	＞15µm

Core Function and Features:

Core Functions

Fully Automated Packaging

Equipped with PLC and touch screen, it allows full customization on wrapping counts, speed, film tension and overlap. Simply press one button to complete the entire wrapping process automatically.
Versatile for Various Goods

Easily handle cartons, express packages and other small items in different dimensions. You won’t need to replace any accessories for different sizes.
Customizable Film Tension

Adjust the wrapping tightness freely based on your products, to stop packages from loosening or deforming.
Complete Safety Protection

Emergency stop function and photoelectric detection avoid operational accidents. The closed body design also keeps users safe from high-speed rotating components.
Economical Film Usage

The optional pre-stretch structure stretches film to 200%–250%, which effectively cuts your material spending.

Core Advantages

Dramatic Efficiency Boost

Ditch slow manual work: this machine finishes wrapping in 10–20 seconds per item, 5 to 10 times faster. You will see obvious savings on labor costs.
Consistent & Attractive Packaging

All products get the same standard wrapping, presenting a neat look and enhancing your brand value.
Excellent Cargo Protection

Firm film wrapping shields products from moisture, dirt and bumps during delivery and storage, lowering the rate of goods damage.
Extremely Easy to Use

With intuitive touch screen and physical buttons, anyone can operate it quickly. New workers can master all operations within 10 minutes.
Space-Saving Design

Its compact size fits perfectly in e-commerce warehouses, courier outlets and small production sites where space is limited.

Appicable Industries and Scenarios

Main Application Scenarios

Ideal for e-commerce parcel packing, export carton shipment, warehouse logistics distribution and small goods packaging in manufacturing workshops.
Suitable Industries

Widely applied in cross-border e-commerce, 3C electronics, hardware & fittings, garments & home textiles, food, daily chemical products, auto parts and all sectors that need protective packaging for small cartons and parcels.

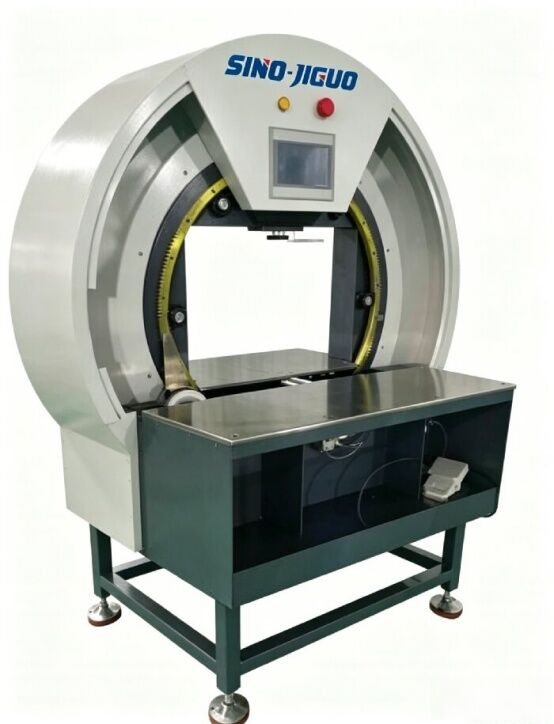

Machine Introduction

6.1 Annular Rotating Ring (Core Component)

Location: Large white circular part on the main body.
Function: This main moving part has built-in gear and transmission system, driving the film unit to rotate 360° at high speed for spiral wrapping. Fitted with high-precision slewing bearing, it runs smoothly and quietly, ensuring efficient and tight wrapping.

6.2 Film Carriage & Unwinding Mechanism

Location: White film roll spindle inside the rotating ring (bottom left in picture).
Function: Holds PE stretch film. The integrated tension control and optional pre-stretch system deliver consistent film tension. It ensures tight wrapping while saving film and lowering running costs.

6.3 Stainless Steel Platform & Conveyor

Location: Central metal platform.
Function: Supports goods for wrapping. Smooth and durable surface allows easy loading and unloading. Some models can link with assembly lines for automatic continuous work. Photoelectric sensors detect goods and trigger wrapping automatically.

6.4 PLC Touch Panel

Location: Display on top of the rotating ring.
Function: Central control center. Adjust wrapping layers, speed, tension and overlap ratio as needed. One-click start and preset parameter groups support quick switching for different products. Easy to learn and operate.

6.5 Control Buttons (Start & Emergency Stop)

Location: Red emergency stop and green start buttons beside the panel.
Function: Emergency stop button cuts power immediately for safety; start button launches the wrapping cycle. All parts comply with industrial safety specifications.

6.6 Foot Pedal Switch

Location: Foot control on machine exterior.
Function: Hands-free operation. Step down after loading goods to start wrapping, ideal for frequent pick-and-place work.

6.7 Frame & Protective Cover

Location: Grey steel base structure.
Function: High-strength welded steel frame keeps the machine stable during high-speed running. Enclosed protection avoids risks from rotating parts and keeps internal components dust-free.

High-Speed Servo Stretch Wrapper | Servo Motor Driven Film Wrapping Machine 1

Accepted Terms: FOB, CFR, CIF, EXW
Accepted Payment Currencies: USD, RMB, EUR
Accepted Payment Methods: T/T, L/C, Cash
