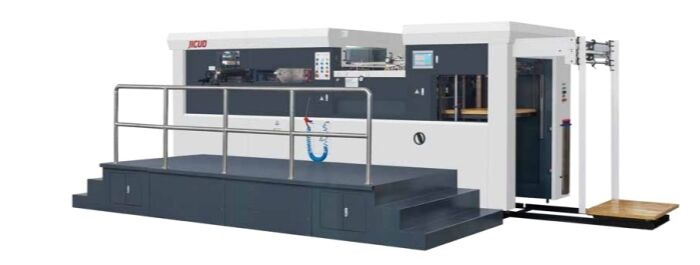

High-Precision Automatic Die Cutting And Creasing Machine Carton Box Making

Name: High-Precision Automatic Die Cutting And Creasing Machine Carton Box Making
Brand: Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. )
SKU: MY-1060E
Price: 97,500.00 USD
Availability: InStock

브랜드 이름:	JIGUO
모델 번호:	MY-1060E
모크:	1
가격:	$95000-$100000
배달 시간:	30
지불 조건:	L/C, T/T, MoneyGram

자세한 정보

제품 설명

자세한 정보

원래 장소:

허베이

인증:

유형:

다이 절단 기계

재료 호환성:

종이, 판지, 플라스틱, 가죽, 직물

작업 속도:

7500초/시간

무게:

16 톤

최대 종이 크기:

1060 × 760mm

안전 기능:

비상정지, 안전가드

기계 크기:

4500x2300x2400mm

절단 방법:

다이 커팅

최대 절단 면적:

1040mm x750mm

크기(LxWxH):

6400mm x 3950mm x 2360mm

포장 세부 사항:

필름 감기

공급 능력:

강조하다:

automatic die cutting machine for carton boxes

high-precision creasing machine

carton box making machine

제품 설명

High-Speed Flatbed Die Cutter for Packaging & Carton Box Production

Product Overview

The JIGUO MY-1060E is a fully automatic die cutting and creasing machine specially designed for the printing and packaging industry. It integrates high-precision positioning, stable running, and high-speed production, widely used for die cutting, creasing, embossing and waste stripping of various paper boxes, cardboard, corrugated paper, color boxes, cosmetic boxes, gift boxes and food packaging.

With advanced PLC control system and human-machine interface, this machine ensures easy operation, low failure rate and long service life, making it an ideal equipment for packaging factories and printing enterprises pursuing high efficiency and high quality.

Technical Specifications

Model	MY-1060E
Max. paper size	1060*760mm
Min. paper size	400*370mm
Max. cutting size	1040*750mm
Max. die cutting speed	7500s/h
Min. Gripper Edge	7mm
Sheet thickness	Corrugated board: ≤4mm Cardboard: 80-2000g/m²
Die-cutting Accurate	±0.1mm
Max. Feeding Pile	1600mm
Max. Delivery Pile	1400mm
Max. pressure	320 Tons
Total power	18 Kw
Net weight	16 Tons
Air requirement (Buyer Provided)	0.8Mpa,＞0.36m³/min
Overall dimension	640039502360mm

Machine Components & Features

Paper Feeding Unit

The JIGUO MYP-1060H automatic die-cutting machine utilizes a fully automated stripping process, significantly improving post-press processing efficiency. Designed for high precision and high-speed operation, this machine simplifies the die-cutting process, increases production efficiency, and ensures high-quality finished products.

Paper Conveying Unit

The JIGUO die-cutting machine's bridge conveyor section is a crucial transfer and transition component between the feeding system and the die-cutting station. It features a smooth, non-slip conveying surface and adjustable guide plates, ensuring stable and precise transport of paper, corrugated cardboard, and other packaging materials, preventing skewing or jamming. Equipped with a synchronized speed control system, this conveyor section perfectly matches the operating rhythm of the front-end feeding unit and the back-end die-cutting unit, effectively reducing material waste and improving the overall accuracy and efficiency of the die-cutting process.

Die-cutting Unit

■ The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
■ This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
■ The oil route is forcibly lubricated by a oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
■ The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.
■ The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.
■ The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.
■ The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.
■ The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italian pneumatic brake and clutch with rotary joint comply with the European
standard. They provide fast clutching, high and stable force, long service life and low noise.

Delivery Unit

One-time stripping system removes all excess paper scraps and waste in a single operation (except retained edge portions). Four-sided waste removal (optional)
Upper, lower, and middle die cam three-link transmission system operates stably, coordinately, and precisely, suitable for high-power, fast loading, unloading, and calibration
Pneumatic lifting stripping frame with central positioning device enables easy operation and reduced preparation time
Pre-assembly platform with central positioning device for convenient installation of stripping plate
Rationally designed stripping process effectively solves problems such as slow speed and plate displacement

Automatic Lubrication System

Timed and controlled lubrication for optimal performance
Closed-loop forced-injection lubrication system with filtration
Reduced maintenance and extended equipment lifespan
Improved overall machine performance and stability

Product Gallery

Our Partners

Production Facility

FAQ

What types of materials can the JIGUO die-cutter handle?

The JIGUO die-cutter is compatible with a wide range of packaging materials, including corrugated board, coated paper, kraft paper, cardboard, and thin plastic sheets. It can adapt to different material thicknesses by adjusting the pressure and guide components.

Warranty Period

12-month warranty

Service & Support

English manual & remote support

How to maintain the JIGUO die-cutter for long-term stable operation?

Regular maintenance includes three key steps: 1) Clean the feeder system, bridge section, and die-cutting unit after each shift to remove residual paper dust and debris; 2) Lubricate the transmission parts and guide rails monthly to reduce friction; 3) Inspect the sensor system and servo components quarterly, and replace worn parts in a timely manner.

Can the JIGUO die-cutter be customized for special die-cutting patterns?

Yes. The die-cutting unit is designed with a flexible plate-mounting structure, which supports customized die-cutting plates for special patterns and shapes. We also provide professional technical guidance for plate installation and parameter debugging to meet personalized production needs.
